Vibration Control & Rubber Bushes
Vibration Control & Rubber Bushes
Rubber bushes and pads, anti-vibration pads in standard sizes, bushes with bolt for motors and pumps, and seat cushions for farm machines.
What to send for a quote
- Bushes: inside and outside diameter, length, and any flange
- Anti-vibration pads: machine weight and the number of feet
- Bushes with bolt: bolt size and the load on each mount
- Exposure to oil or outdoor weather
- Quantity now and per month
Types we make
Add the types you need to one enquiry and send them together. Every type is also made to your drawing or sample.

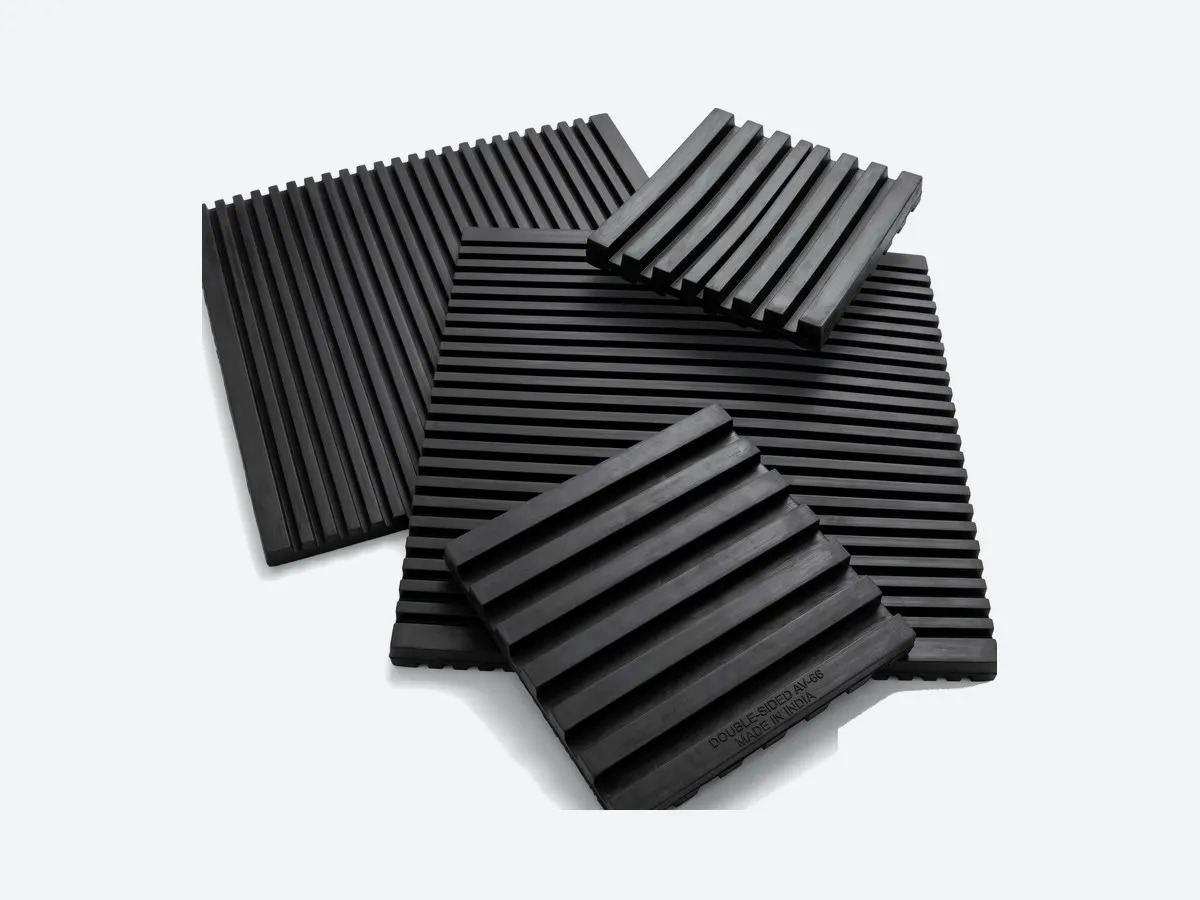

Anti-vibration pads
Ribbed rubber pads that stop machines walking and cut vibration and noise. Standard sizes in two thicknesses; other sizes and shapes made to order. Also used under cooling tower fans and motors.
| Pad size | 12 mm thick | 25 mm thick |
|---|---|---|
| 4" × 4" | ||
| 6" × 6" | ||
| 8" × 8" | ||
| 10" × 10" | ||
| 12" × 12" | ||
| Custom size or shape | ||
Bushes, pads, mountings and cushions
| Image | Type | Enquiry |
|---|---|---|
 | Rubber bushesFor pivots, housings and mounts, including heater cover bushes | |
 | Rubber padsCushioning, levelling and wear protection | |
 | Bush with bolt, smallAnti-vibration mounting for motors, pumps and panels | |
| | Bush with bolt, bigAnti-vibration mounting for heavier motors and pumps | |
 | Back cushion padsSeat back cushions for tractors and farm machines |
About these parts
Rubber bushes and pads cushion contact between parts. Anti-vibration pads and bushes with bolt sit under machines to stop them walking and to cut vibration and noise. The pads come in standard sizes, and the bushes are made to your drawing.
Used in
Compounds commonly specified
| Compound | Typically chosen for |
|---|---|
| Neoprene (CR) | General anti-vibration duty, indoors and out |
| NBR | Where oil or coolant drips onto the pad |
| EPDM | Outdoor plant such as cooling-tower fans |
Typical industry guidance; the compound for your part is confirmed with the quotation. Compare compounds
Not listed? We make it to your drawing or sample.
Send the drawing, the old part or a photo with sizes.
Common questions
Which anti-vibration pad size do I need?
Pads come in 4" × 4" to 12" × 12". Choose a pad at least as large as the machine foot. Tell us the machine weight and the number of feet and we will suggest the size and thickness.
12 mm or 25 mm thick?
A thicker pad deflects more under load, so it isolates slower vibration and suits heavier machines. A 12 mm pad suits lighter machines and levelling.
What is a bush with bolt used for?
It mounts a motor, pump or panel. The bolt fixes the machine, and the rubber between the plates absorbs the vibration before it reaches the floor or frame.
